PrecisionCoat BT
Spray Coater and Dispenser
Spray Coater and Dispenser
SCS

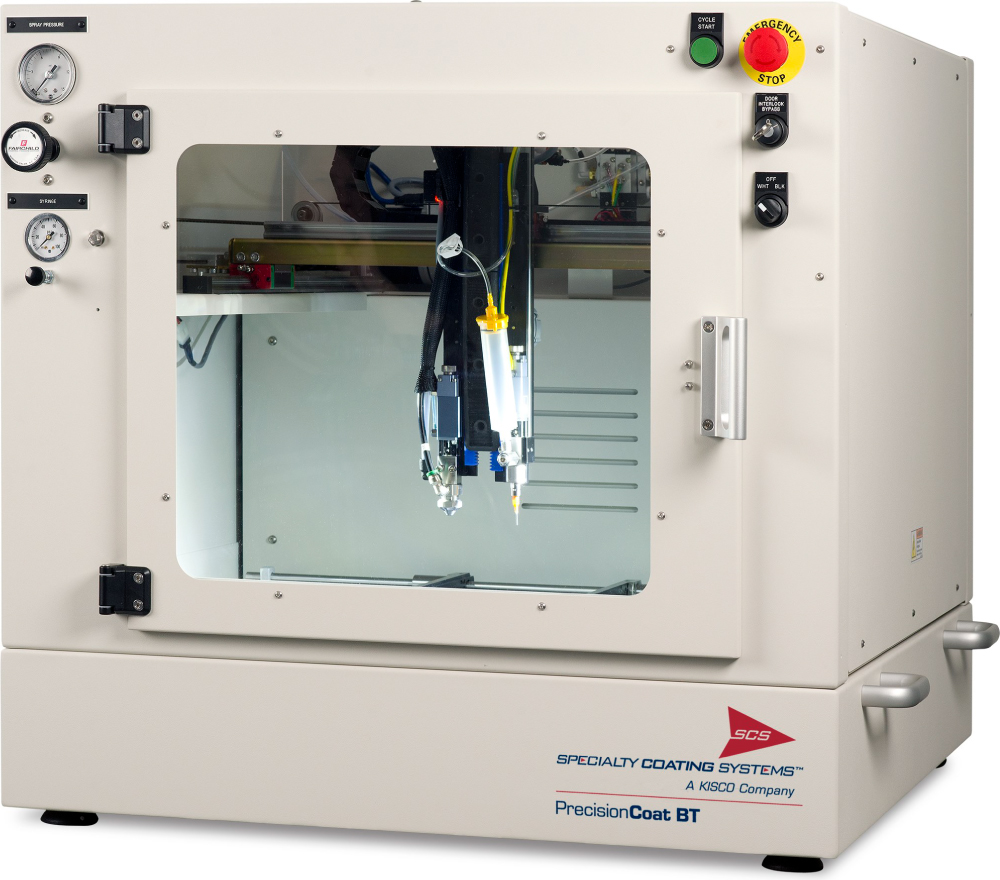

PrecisionCoat BT
Benchtop
Spray Coating and Dispense System
Overview
Accuracy, productivity and efficiency in a highly reliable, compact unit
When it comes to applying material in a highly repeatable manner, the PrecisionCoat BT is the solution. Designed for companies who are looking to automate their time-intensive manual coating and dispensing processes or those who would like to have additional coating capacity in their laboratory or on their production floor, the PrecisionCoat BT improves accuracy, productivity and efficiency in a highly reliable, compact unit.
Features & Benefits
- Ease of programming
- High accuracy and repeatability
- Up to two configurable valves
- Profile sharing between multiple coating systems
- Standard interior LED lighting with optional black LED inspection light
- Adjustable rail fixture
- Variety of coating pots
- Laser programming aid
- Teaching camera
- Purge cups
- Safety interlocks
Technical Specifications
| Minimum Substrate Size | 1.5 x 2 in / 3.81 x 5.08 cm |
|---|---|
| Maximum Substrate Size | One Valve: 14 x 14 in / 35.6 x 35.6 cm Two Valves: 11.8 x 14 in / 30.0 x 35.6 cm |
| Maximum Substrate Height | 4.75 in / 12.07 cm (above board for single valve system) 3.25 in / 8.26 cm (above board for dual valve system) 4 in / 10.2 cm (below board for a single or dual valve system) |
| Repeatability | ±0.003 in / ±0.08 mm |
| Electrical | 120 VAC, 5A Alternate electrical configurations available. |
| Exhaust Requirements | 150 CFM exhaust with 4 in / 10.2 cm duct |
| Air Supply | 5 CFM @ 80 psi dry air Some moisture-sensitive materials may require use of nitrogen instead of clean, dry air. |
| Dimensions (W x D x H) | 35.4 x 37.9 x 30.6 in / 90.0 x 96.3 x 77.7 cm |
| Weight | 240 lb / 109 kg |
| Optional Features/Accessories |
Teaching camera
Purge cups
Please contact us for a full list of available options.
|
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
