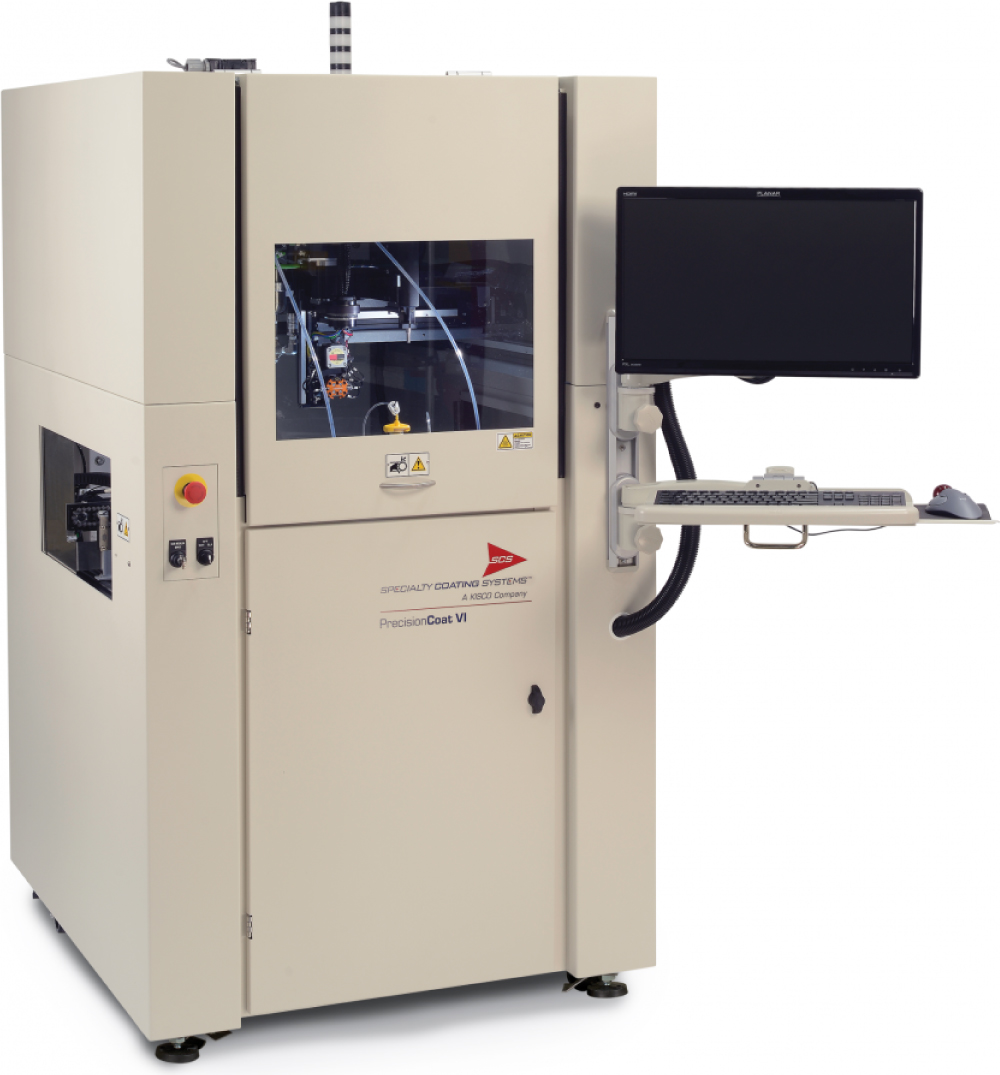

PrecisionCoat VI
Automated and Precise
Spray Coating and Dispense System
Overview
A total system that ensures accuracy, repeatability and high-throughput
The SCS PrecisionCoat VI selective conformal coating and dispense system is a fully programmable, multi-purpose system that offers unparalleled programming for efficiency in automated material applications. SCS customers rely on the PrecisionCoat to precisely apply a wide range of materials, including 100% solids, solvent-based and water-based coatings. Building upon the outstanding reliability and precision of its predecessor, this robust and highly flexible platform offers manufacturers the unmatched efficiency and accuracy they have come to expect for conformal coating, dispensing and/or potting applications.
Features & Benefits
- High accuracy and repeatability
- Servo motor position control
- Windows®-based software control with user-friendly interface
- Ease of programming
- Profile sharing between multiple coating systems; including previous PrecisionCoat models
- SCS designed valves
- Multiple dispensing and mixing solutions
- Interior LED lighting
- SMEMA transfer protocols
- Batteryless absolute encoders
Technical Specifications
| Minimum Substrate Size | 2 x 4 in / 5.08 x 10.16 cm (2 x 2 in / 5.08 x 5.08 cm with slide rail) |
|---|---|
| Maximum Substrate Size | 20 x 20 in / 50.8 x 50.8 cm (20 x 29 in / 50.8 x 73.7 cm with second board stop) |
| Maximum Substrate Height | 5 in / 13 cm above and below pass height |
| Electrical | 120 VAC, 6A; 230 VAC, 3.5A |
| Exhaust Requirements | 150 CFM exhaust with 6 in / 15 cm duct |
| Air Supply | 10 CFM @ 90 psi dry air Some moisture-sensitive materials may require use of nitrogen instead of clean, dry air. |
| Dimensions (W x D x H) | 40.8 x 54.5 x 71.4 in / 103.7 x 138.4 x 181.4 cm |
| Weight | 1000 lb / 454 kg |
| Optional Features/Accessories |
Automatic Quick Change with up to 8 configurable tools
Vision system
Teaching camera
Coating flow meter
Needle calibration
Purge cups
Second board stop (29 inch boards)
Black LED inspection light
Metered dispense weight scale
Material level weight scale
Adjustable rail
UV spot cure
Variety of pumping systems
5 axes programmable tilt and rotate
Auto-width conveyor
Programmable valve spacing
Programmable spray pressure
Programmable pot pressure
Programmable syringe pressure
Laser height sensing
Valve on/off during continuous motion
Please contact us for a full list of available options.
|
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
