G300-3F
Single-channel Dosing Pump
Single-channel Dosing Pump
Longer
G300-3F
Industrial
Peristaltic Pump
- Single Channel
Overview
Dispensing type industrial peristaltic pump for laboratory and industrial applications

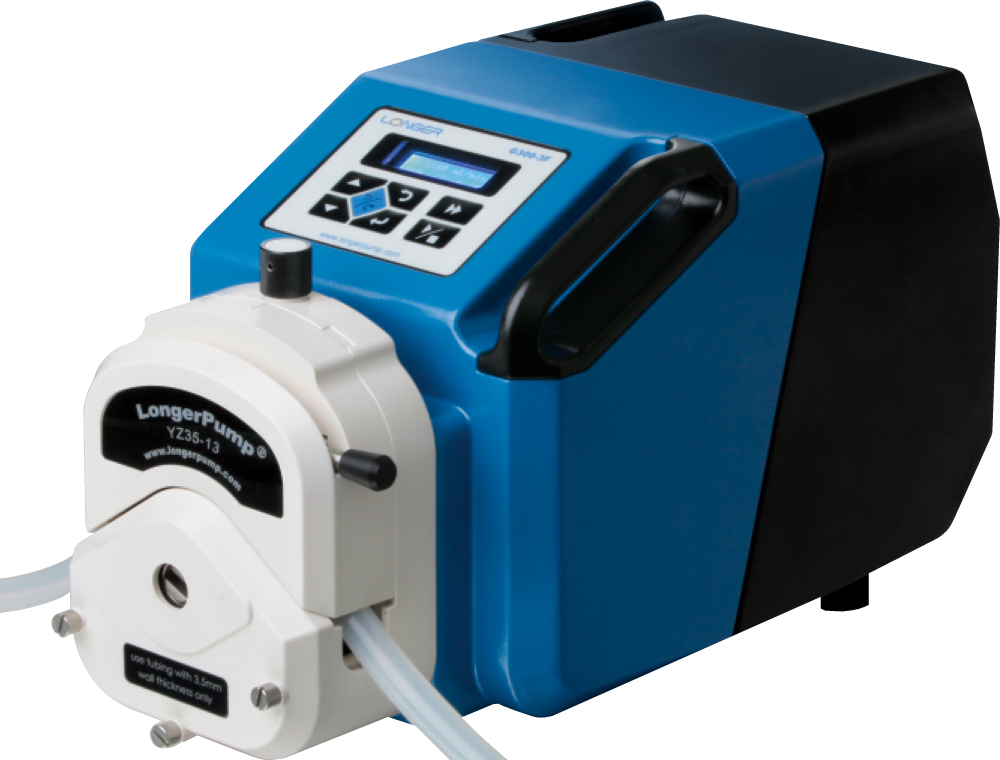

G300-3F is a single-channel peristaltic pump that can be used with various pump heads and tubings of different sizes. G300-3F can reach up to 5500 mL/min. System can be controlled through built-in control panel and external signal interface.
Features & Benefits
- Manual usage through built-in control panel
- Control through external signal interface
- Memory function for automated storage of running parameters
- Clockwise (CW) and Counter-clockwise (CCW) operation
- LCD display
- User-friendly membrane keypad
- Aluminum alloy housing for high corrosive resistance
- Powerful electromagnetic compatibility to prevent problems in the EMI environment
- High IP rating for usage in wet and dusty environment
Technical Specifications
| Speed | 0-300 RPM, CW/CCW |
|---|---|
| Speed Resolution | 0.1 RPM resolution within the speed of 0-100 RPM 1 RPM resolution within the speed of 100-300 RPM |
| Maximum Number of Channels | 1 |
| Display | LCD |
| Control Mode | Control panel, External signal control |
| Work Mode | Flow rate mode or Dispensing mode |
| Flow Rate Mode | Flow rate is displayed and the pump runs continuously at the set flow rate |
| Flow Rate Calibration | Improve the flow rate accuracy |
| Flow Rate Setting Range | 1-9999 mL/min |
| Dispensing Mode | The pump dispenses continuously according to the parameters: dispensing volume, cycles, interval, back suction |
| Dispensing Calibration | Improve the dispensing volume accuracy |
| Dispensing Volume | 0.1 mL - 9999 L |
| Dispensing Cycle | 0-9999 |
| Interval Time | 1 sec - 99.9 min |
| Back Suction Angle | 0-1800°, resolution is 36° |
| External Control | Start/stop control, direction control: voltage level signal, 5 V to 12 V Speed control：0-5 V |
| Pump Status Output | 1 OC gate signal for start/stop, 1 OC gate signal for direction, 0-4000 Hz pulse signal for pump speed 0-300 RPM (linear function) |
| Power-off Memory | Return to previous status when power on |
| Footswitch Control | The pump could be start/stop controlled by footswitch accessory |
| Dimensions (L x W x H) | 360 mm x 215 mm x 243 mm |
| Power Supply | AC 220V±10%/120W, 50/60Hz |
| Operating Temperature | 0-40°C |
| Relative Humidity | ‹100% |
| IP Rating | IP65 |
| Weight | 14 kg |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
