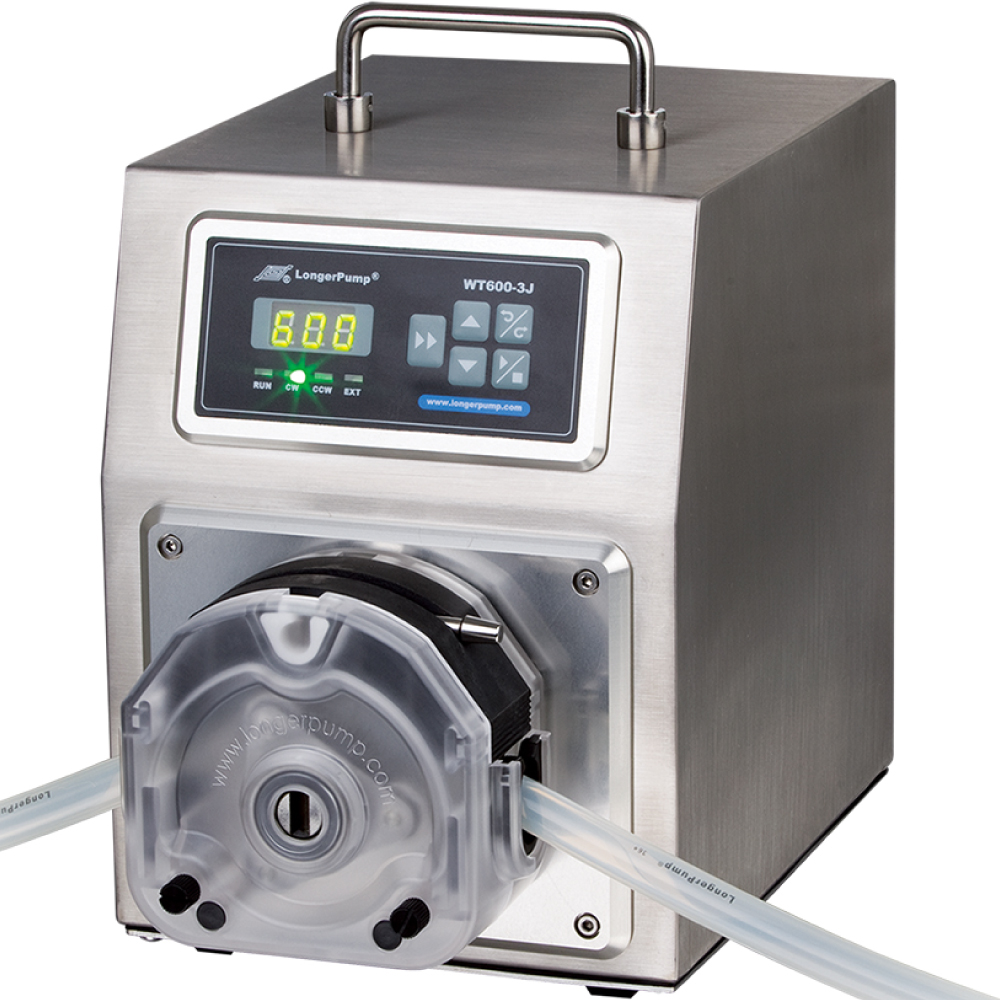

WT600-3J
Multi-channel Dosing Pump
Multi-channel Dosing Pump
Longer
WT600-3J
Basic
Peristaltic Pump
- Up to 4 Channels
Overview
Industrial peristaltic pump for laboratory and industrial applications
WT600-3J is a multi-channel peristaltic pump that can be used with various pump heads and tubings of different sizes. WT600-3J can reach up to 6000 mL/min with single channel operation and up to 12000 mL/min with multi-channel operation. System can be controlled through built-in control panel, external signal interface and communication interface.
Features & Benefits
- Manual usage through built-in control panel
- Control through external signal interface
- Control through communication interface (RS485)
- Memory function for automated storage of running parameters
- Clockwise (CW) and Counter-clockwise (CCW) operation
- 3-digit LED display
- LED indicators for current operating status
- Maintenance-free brushless DC motor
- High output torque and low vibration
- User-friendly membrane keypad
- Prime key for fast filling and emptying
- Stainless steel housing
- High IP rating for usage in industrial environment
Technical Specifications
| Speed | 60-600 RPM, CW/CCW |
|---|---|
| Speed Resolution | 1 RPM |
| Speed Accuracy | ≤±1% |
| Maximum Number of Channels | 4 |
| Display | 3-digit LED display for current speed, 4 LED indicators for operating state |
| Control Mode | Control panel, External signal control, Communication control |
| External Control | Start/stop, direction and speed control (4-20 mA, 0.5-5 V, 1-10 V, 1-10 kHz external control module optional) |
| Communication Interface | RS485 |
| Power-off Memory | Return to previous state when power on |
| Prime | For fast filling and emptying at full speed |
| Dimensions (L x W x H) | 273 mm x 190 mm x 272 mm |
| Power Supply | AC 220V±20%/200W, 50/60Hz or AC 110V±20%/200W, 50/60Hz |
| Operating Temperature | 0-40°C |
| Relative Humidity | ‹90% |
| IP Rating | IP55 |
| Weight | 7.3 kg |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
