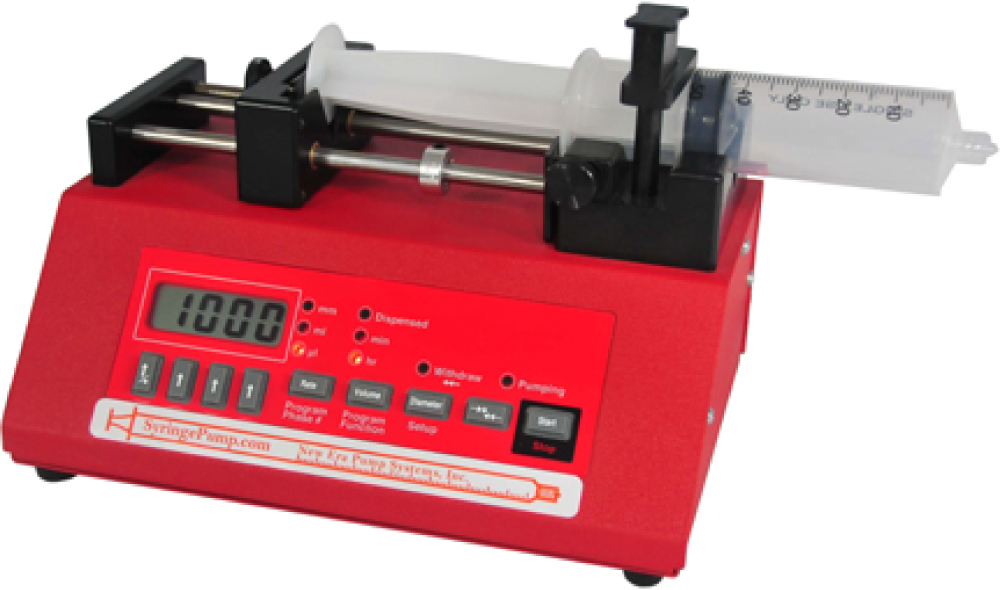

New Era

NE-1010

Programmable High Pressure

Syringe Pump

- Single Channel

Overview

Programmable single channel high-pressure syringe pump for applications in research, medicine, veterinary, manufacturing and many other areas

NE-1010 is a single channel syringe pump designed for automation. User can create multi-phase programs, and the value of every parameter (e.g. pumping rate, dispensing volume,...etc.) can be set individually for each phase. NE-1010 can hold plastic, glass or stainless steel syringes ranging from microliter to 140 mL in volume. The system can provide infusion rates from 1.453 μL/hr (using 1 mL syringe) to 7635 mL/hr (using 60 mL syringe). Lower (‹1.453 μL/hr) and higher (›7635 mL/hr) infusion rates are possible with smaller (‹1 mL) and bigger (›60 mL) syringes, respectively.

Features & Benefits

Precise, reproducible flow rates
Programming up to 41 phases - user can set pumping rate and dispensing volume for each phase, insert pauses and configure other parameters
Stand-alone use with built-in front panel
Use with PC via RS-232 control (required cables and PC software are sold separately)
TTL I/O connector to interact with external devices
Compatibility with syringes up to 140 mL
Purge (prime) mode for infusion or withdrawal at top speed
Ability to change pumping rate while pumping
Selectable pumping rate units (mL/hr, μL/hr, mL/min, μL/min)
Non-volatile memory of all operating parameters and pumping program
Power failure mode to restart the pumping program after a power interruption
Configurable audible alarm for alerting the user
Stall Detection feature that automatically stops pump when pumping is impeded

Technical Specifications

Operating Mode	Infusion, Withdrawal
Number of Syringe Channels	1
Syringe Size	Up to 140 mL 140 mL syringes can be partially filled. 60 mL or smaller syringes can be fully filled.
Syringe Inside Diameter (ID) Range	0.1-50 mm
Maximum Pumping Rate	B-D 60 mL syringe: 6120 mL/hr Terumo 60 mL syringe: 7635 mL/hr Maximum pumping rate varies between brands due to differences in syringe ID.
Minimum Pumping Rate	B-D 1 mL syringe: 1.459 μL/hr Monoject 1 mL syringe: 2.176 μL/hr Minimum pumping rate varies between brands due to differences in syringe ID.
Maximum Force	100 lbs at minimum speed, 18 lbs at maximum speed
Number of Program Phases	41
RS-232 Pump Network	100 pumps maximum
RS-232 Selectable Baud Rates	300, 1200, 2400, 9600, 19200
Dimensions	8.75 in x 5.75 in x 4.5 in (22.86 cm x 14.605 cm x 11.43 cm)
Weight	3.8 lbs (1.63 kg)
Voltage	12V DC at full load
Amperage	1000 mA at full load
