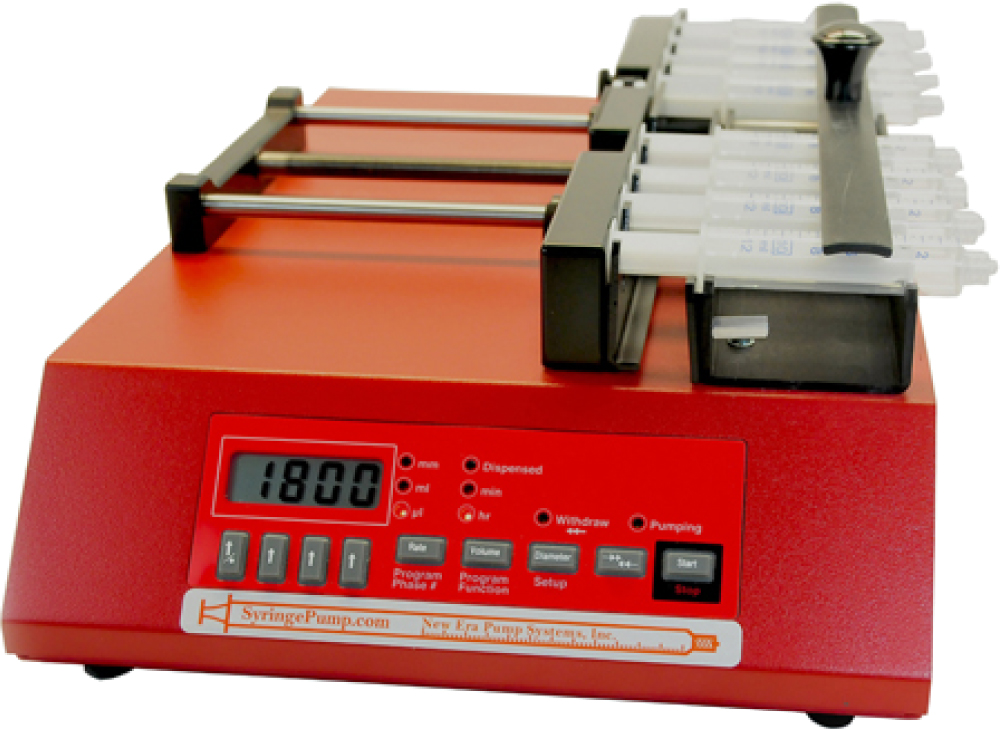

New Era

NE-1800

Programmable 8 Channel

Syringe Pump

Overview

Programmable 8-channel syringe pump for applications in research, medicine, veterinary, manufacturing and many other areas

NE-1800 is a eight channel syringe pump designed for automation. User can create multi-phase programs, and the value of every parameter (e.g. pumping rate, dispensing volume,...etc.) can be set individually for each phase. NE-1800 can hold plastic, glass or stainless steel syringes ranging from microliter to 10 mL in volume. The system can provide infusion rates from 0.452 μL/hr (using 1 mL syringe) to 415.9 mL/hr (using 10 mL syringe). Lower (‹0.452 μL/hr) infusion rates are possible with smaller (‹1 mL) syringes.

Features & Benefits

Precise, reproducible flow rates
Programming up to 41 phases - user can set pumping rate and dispensing volume for each phase, insert pauses and configure other parameters
Stand-alone use with built-in front panel
Use with PC via RS-232 control (required cables and PC software are sold separately)
TTL I/O connector to interact with external devices
Compatibility with syringes up to 10 mL
Purge (prime) mode for infusion or withdrawal at top speed
Ability to change pumping rate while pumping
Selectable pumping rate units (mL/hr, μL/hr, mL/min, μL/min)
Non-volatile memory of all operating parameters and pumping program
Power failure mode to restart the pumping program after a power interruption
Configurable audible alarm for alerting the user
Stall Detection feature that automatically stops pump when pumping is impeded

Technical Specifications

Operating Mode	Infusion, Withdrawal
Number of Syringe Channels	8
Syringe Size	Up to 10 mL
Syringe Inside Diameter (ID) Range	0.1-50 mm
Maximum Pumping Rate	B-D 10 mL syringe: 342.6 mL/hr Terumo 10 mL syringe: 410.7 mL/hr Maximum pumping rate varies between brands due to differences in syringe ID.
Minimum Pumping Rate	B-D 1 mL syringe: 0.454 μL/hr Monoject 1 mL syringe: 0.677 μL/hr Minimum pumping rate varies between brands due to differences in syringe ID.
Dispensing Accuracy	±1%
Maximum Force	160 lbs at minimum speed, 30 lbs at maximum speed
Number of Program Phases	41
RS-232 Pump Network	100 pumps maximum
RS-232 Selectable Baud Rates	300, 1200, 2400, 9600, 19200
Dimensions	10.25 in x 15 in x 5 in (26.035 cm x 38.1 cm x 12.7 cm)
Weight	10.125 lbs (4.595 kg)
Voltage	12V DC at full load
Amperage	1000 mA at full load

All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
