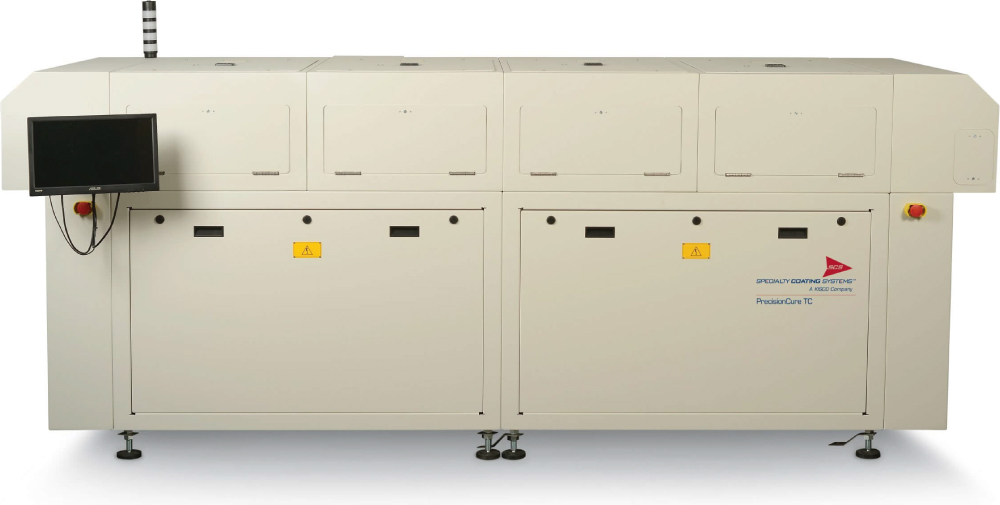

PrecisionCure TC (IR)
Thermal Curing System
Thermal Curing System
SCS
PrecisionCure TC (IR)
Infrared Radiation (IR)
Thermal Curing System
Overview
Reliability and efficiency throughout the curing process
The SCS PrecisionCure TC infrared radiation (IR) thermal curing system provides customers with the reliability and efficiency needed throughout the curing process. The SCS PrecisionCure TC (IR) owns two or four heating zones, each heated by 12 ceramic heaters for even heating.
Features & Benefits
- Heating profile database
- Independently-controlled heating zones
- Pin-chain-edge handling
- Left to right conveyor travel
- Powered conveyor width adjust
- 4-inch top and bottom pass-through heights
- Double-walled heat enclosure
- Optical inlet/outlet sensors
- Windows-based software with touchscreen display
- Side access panels
- Automatic runaway heater shutdown
- Exhaust interlock sensor
- SMEMA interface
Technical Specifications
| Heat Source | Ceramic infrared heating units |
|---|---|
| Ceramic Heater Temperature | Maximum temperature: 275°C / 525°F |
| Electrical Options | Two zone system: 208, 220, 230, 420, 440, 460 Vac, 3Ø, 50/60 Hz, 7 KVA Four zone system: 208, 220, 230, 420, 440, 460 Vac, 3Ø, 50/60 Hz, 13 KVA |
| Exhaust Requirements | 350 CFM / 155 m3/hr at 0.2 in water column |
| Conveyor Type | Pin-chain-edge handling with 0.375 in / 0.95 cm pin chain |
| Conveyor Speed | 0.5 to 120 in/min / 1 to 300 cm/min |
| Substrate Width | 2.5 to 20 in / 6.5 to 50.8 cm |
| Substrate Length | Minimum length: 4 in / 10.2 cm |
| Drive System | Direct-drive stepper motor |
| Tunnel Clearance | 4 in / 10 cm (top and bottom) |
| Dimensions (W x D x H) | Two zone system: 74.5 x 39.6 x 50 in / 189.2 x 100.7 x 119.3 cm Four zone system: 122.5 x 39.6 x 50 in / 311.2 x 100.7 x 119.3 cm |
| Weight | Two zone system: 750 lb / 340 kg Four zone system: 1,100 lb / 499 kg |
| Optional Features/Accessories | Tower light Barcode reader Temperature profiling and analysis IR board temperature monitoring Humidity control Right to left conveyor travel Automated programmable width |
All or some of the specifications and features noted on this page may be optional. All necessary details in this regard may not be specified on this page. Please contact us for full details. / Product design, appeareance, functionality, features and specifications are subject to change without notice.
